Bloom 612 - Dreamcast 256 bytes

A 256-byte procedural graphics program for the Sega Dreamcast video game console, released at Lovebyte 2025.

Tested in Redream with v1.004, v1.01c and v1.01d BIOS, does not seem to work on v1.022 though.

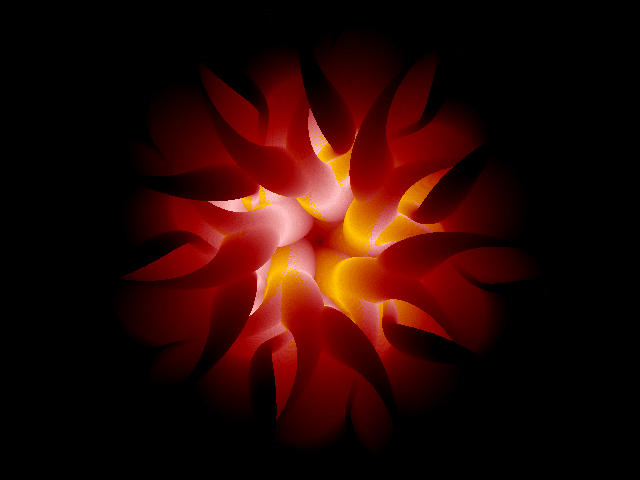

This is a SH-4 port of a processing sketch i originally made in June 2024, all integers (3x additive integer circle algorithm progressively scaled up), it render a blooming flower.

My journey on the Dreamcast began in mid-2024, mainly motivated by the RISC CPU (2-way Superscalar,), 640x480 resolution and 24-bit color depth.

I never owned a Dreamcast myself (i did have a Sega Saturn though !) but i was aware of its well-designed hardware (Sega last console breath !), it was pretty cool that Linux could run on it back in early 2000 !

I don't think i had much difficulty on the port except getting grips of the SH-4, it only use integers so doesn't really use the powerful bits of the SH-4 (such as FSCA and FSRRA instructions) but it was a good introduction, the original idea was to add a cursive logo signature (with the 'O' of "Orz" being a spiral; Dreamcast logo) but this sadly didn't fit. (wouldn't fit the anonymous compo theme anyways !)

The Dreamcast is a powerful beast and can probably deliver much more impressive graphics, it is a neat alternative to x86 or ARM.

Name is a reference to The Little Prince.

Chaos Rose was a similar albeit 3D looking flower (different algorithm) which was very cool to watch at previous Lovebyte.

Variants

Here are some more images produced by the same algorithm, it can produce many spiral looking graphics, the first ones were made in June, some of these may have been interesting to show but also added ~10 more instructions (especially the later ones) :

fractalesque

this one looked kinda cool

spiral and blobs

a quite rough sunflower (a try at additive blending also)

another type of flower

Dreamcast SH-4 sources

! assume r2, r3, r7 are 0

mov #19,r1

shll16 r1

mov #23,r4

shll16 r4

mov #14,r5

shll16 r5

neg r1,r6



! clear screen

mov.l VIDEO_BASE,r12

mov.l VIDEO_DRAW_OFFSET,r0

shll r0 ! ~640*480*4

clr:

    mov.l r2,@(r0,r12)

    add #-3,r0

    dt r0

    bf clr

mov #-16,r13



mov.l r2,@(r0,r12)



mov.l VIDEO_DRAW_OFFSET,r0

add r0,r12



mov #-6,r14

mov #-7,r15



main:

    mov r12,r8

    shlr16 r8

iter:

    mov r2,r11

    shad r14,r11

    add r11,r1

    mov r1,r11

    shad r14,r11

    sub r11,r2



    mov #12,r9

ia:

    mov r4,r11

    shad r14,r11

    add r11,r3

    mov r3,r11

    shad r14,r11

    sub r11,r4

    dt r9

    bf ia



    mov #7,r10

ib:

    mov r6,r11

    shad r15,r11

    add r11,r5

    mov r5,r11

    shad r15,r11

    sub r11,r6

    dt r10

    bf ib



    ! px

    mov r1,r9

    add r3,r9

    add r5,r9

    shad r13,r9



    ! py

    mov r2,r10

    add r4,r10

    add r6,r10

    shad r13,r10



    ! compute index

    mov #40,r11

    shll2 r11

    shll2 r11

    mul.l r11,r10

    sts macl,r10

    add r9,r10

    shll2 r10



    ! compute color

    mov r7,r11

    shll2 r11

    add r11,r11

    sub r7,r11 ! r11 * 7

    mov #-4,r0

    shad r0,r11

    mov r8,r9

    mov #-14,r0 ! -14 for a cleaner looks

    shad r0,r9

    add r9,r11

    add #-127,r11

    cmp/pz r11

    bt positive

    neg r11,r11

positive:

    mov #-3,r0

    mul.l r0,r11

    sts macl,r11 ! * -3

    mov #127,r9

    shll r9

    add #1,r9 ! 255

    add r11,r9 ! r

    add r11,r11 ! * 2

    mov #48,r0

    shll2 r0 ! 192

    add r0,r11 ! g



    cmp/pz r9

    subc r0,r0

    and r0,r9 ! max(r9, 0)



    cmp/pz r11

    subc r0,r0

    and r0,r11 ! max(r11, 0)



    add r12,r10

    mov r11,r0



    shll16 r9

    shll8 r11

    or r9,r11 ! RG



    mov.l r11,@r10



    add #4,r10

    or r0,r11 ! RGG

    mov.l r11,@r10



    dt r8

    bf iter



    mov r1,r0

    bsr scale

    nop

    add r0,r1



    mov r2,r0

    bsr scale



    mov #2,r8

    shll8 r8

    add #16,r8

    add #1,r7

    cmp/hi r8,r7

el:

    bt el

    add r0,r2

    bra main



scale:

    mov #-10,r9

    shad r9,r0

    mov #5,r11

    mul.l r11,r0

    sts macl,r0

    rts



.align 2

    VIDEO_BASE: .long 0xa5200000

    VIDEO_DRAW_OFFSET: .long (320 + (240 * 640)) *
4

p5.js prototype sources

let x0 = 19<<16

let y0 = 0

let x1 = 0

let y1 = 23<<16

let x2 = 14<<16

let y2 = -x0



function setup() {

  createCanvas(640, 480)

  background(0)

}



function draw() {

  if (frameCount > 512) return



  loadPixels()

  for (let i = 42281; i >= 0; i -= 1) {

    x0 += y0 >> 6

    y0 -= x0 >> 6



    for (let a = 0; a < 12; a += 1) {

      x1 += y1 >> 6

      y1 -= x1 >> 6

    }



    for (let a = 0; a < 7; a += 1) {

      x2 += y2 >> 7

      y2 -= x2 >> 7

    }



    let px = (x0 + x1 + x2) >> 16

    let py = (y0 + y1 + y2) >> 16



    let offset = (width / 2 + height / 2 * width) *
4

    let index = offset + (px + (py * width)) * 4



    let m = abs((((frameCount * 7) >> 4) + (i
>> 14)) - 127) * -3

    let r = 255 + m

    let g = 192 + m * 2



    // only needed on HW

    //r = ~(r >> 31) & r

    //g = ~(g >> 31) & g



    pixels[index + 0] = r

    pixels[index + 1] = g

    pixels[index + 2] = 0



    // cover gaps (smoother) + blend colors

    pixels[index + 0 + 4] = r

    pixels[index + 1 + 4] = g

    pixels[index + 2 + 4] = g

  }



  x0 += 5 * (x0 >> 10)

  y0 += 5 * (y0 >> 10)



  updatePixels()

}
